285-Series Surface Mount Circuit Breaker 100A | 4Boats
BSS7187
- Dispatched in 2-3 days
- 30 Day Return Policy
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Regular price
Β£80.06
Sale priceΒ£69.71
Save Β£10.35
Tax included.

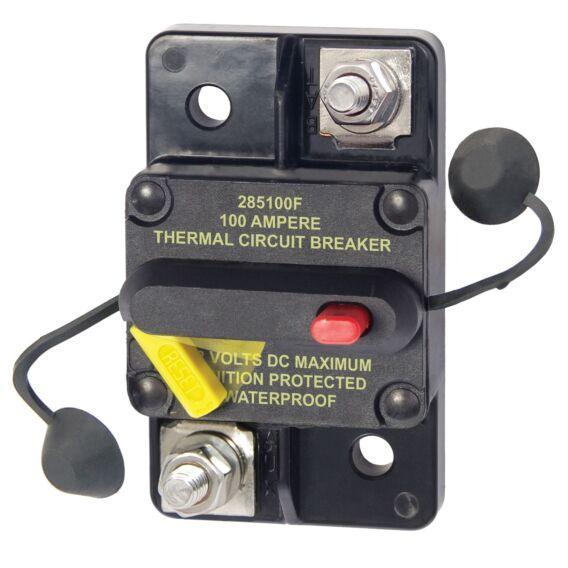

285-Series surface-mount thermally responsive circuit breaker rated 100 A for DC systems up to 48 V, with manual reset and 3,000 A interrupt capacity at 48 V.
- Amperage: 100 A
- Maximum voltage: 48 V DC
- Mounting: Surface mount
- Circuit breaker type: Thermally responsive bi-metal blade
- Terminal stud: M6 (accepts 1/4" ring terminal)
- Terminal stud torque: 5.65 NΒ·m (50 in-lb)
- Interrupt capacity: 3,000 A @ 48 V
- Operating temperature: -40Β° C to 85Β° C (-40Β° F to 185Β° F)
- Class: Type III β switchable/manual reset, trip free
Do not use as a switch where high inrush currents are expected.
