100W Dual Battery Solar Kit, 10A PWM | 4Boats

Photonic Universe 100W waterproof monocrystalline solar kit with a 10 A dual-battery PWM charge controller and 2x5 m MC4 cables — ideal for campervans, motorhomes/RVs and boats.

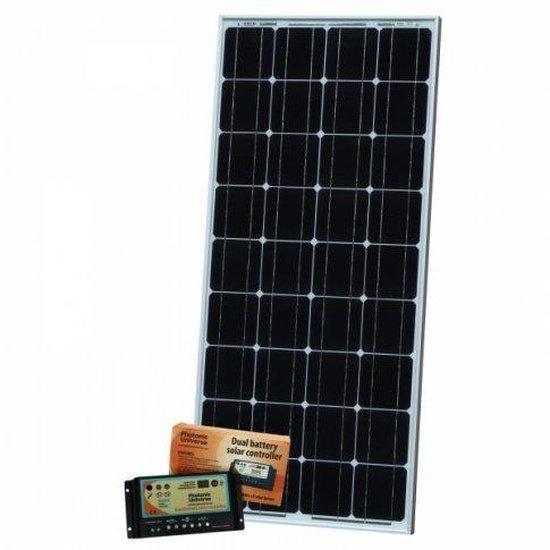

• Kit contents: 100W waterproof high-efficiency monocrystalline solar panel with 2 x 5 m solar cables and MC4 connectors, plus a 10 A 12 V/24 V dual-battery PWM solar charge controller (controller intended for indoor/internal mounting).

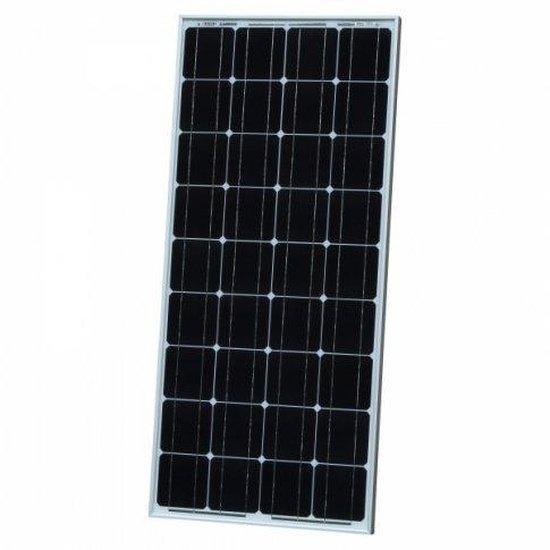

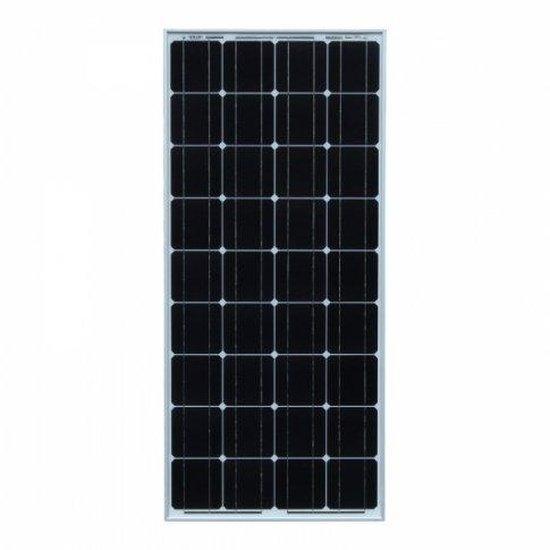

• Solar panel specs: Peak power 100W; maximum power voltage (Vmp) 19.3 V; maximum power current (Imp) 5.18 A; open circuit voltage (Voc) 22.9 V; short circuit current (Isc) 5.56 A; tolerance 0~+3%.
• Panel dimensions & weight: 1200 x 540 x 35 mm (47.2 x 21.3 x 1.4 in); weight 8.5 kg (18.7 lb); 4 mounting holes for secure fixing.

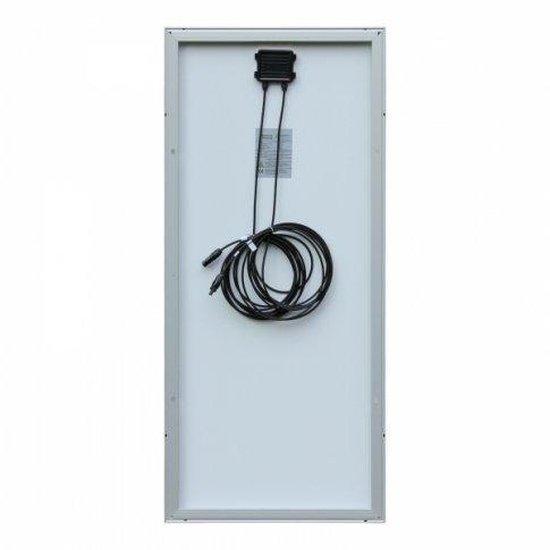

• Cabling: 2 x 5 m high-quality single-core solar cable (4.0 mm²) with MC4 connectors; cables rated for high roof temperatures and minimal power loss; MC4s can be cut for direct controller connection.

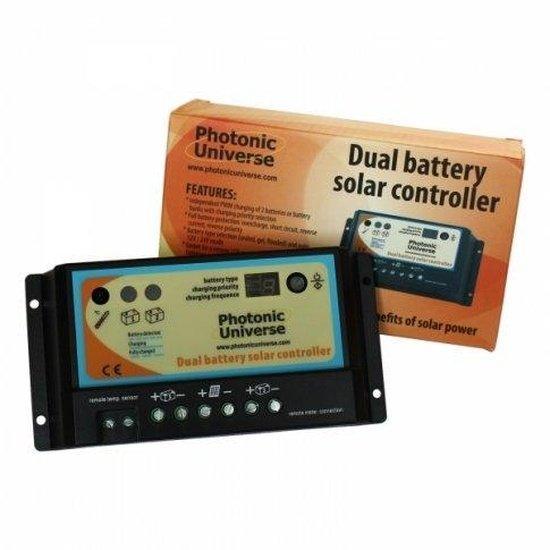

• Controller features: 10 A dual-battery PWM controller with automatic 12/24 V selection; charges and protects two batteries (engine + leisure or two banks), allows initial charge priority and diverts current automatically when one battery is full; also works with a single battery.
• Controller specifications: 3 pairs of terminals (PV input + Battery 1 + Battery 2; no dedicated load terminal); terminals accept up to 4.0 mm² wire; self-consumption 4 mA (night), 10 mA (when charging); working temperature −35°C to +55°C; size 155 x 76 x 40 mm (6.1 x 3.0 x 1.6 in); weight 185 g (0.41 lb); multiple mounting holes for ease of installation.
• Protections & notes: Fully automated protection against over-charge, over-discharge, reverse polarity and short circuit; power allowance and serial-number testing for quality control; essentials kit only — mounting accessories and batteries not included; due to our warehouse arrangements, the solar charge controller may be shipped separately.

Compatibility & care: Compatible with 12 V/24 V systems (controller auto-selects); use appropriate battery capacity and fusing, avoid shading and keep the panel clean for best performance.
