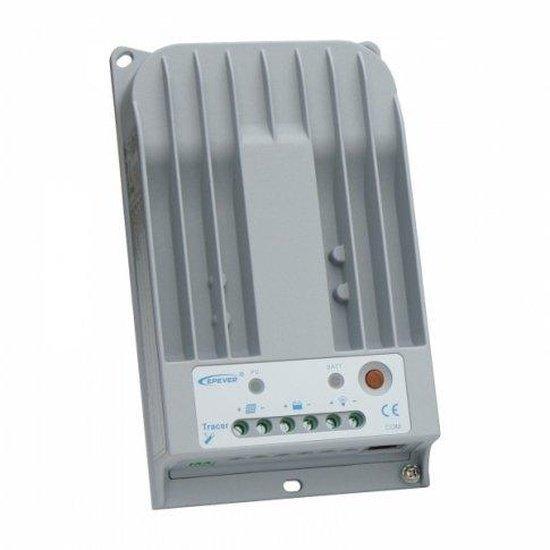

High 10A MPPT Charge Controller 12/24V 150V | 4Boats

Reliable high-efficiency 10 A MPPT solar charge controller for 12/24 V battery systems. Accepts PV Voc up to 150 V and delivers >95% conversion efficiency for improved energy harvest. Always connect the battery before the solar panel.

• MPPT technology: advanced Maximum Power Point Tracking to maximise energy harvest; efficiency >95%.
• PV input and power limits: PV Voc up to 150 V; maximum PV power 130W (12 V) / 260W (24 V).
• Charging and current limiting: 10 A maximum charging current with a current-limiting function to allow future PV expansion.
• Battery system and indicators: automatic 12/24 V recognition (always connect the battery before the solar panel); LED indicators show charging status and battery condition.
• Protections: reverse-current prevention at night, automatic over-charge cut-off, deep-discharge protection, PV over-voltage, overload and short-circuit protection, reverse-polarity protection, self-diagnostic functions and optional audible alarm for fault notification.
• Communications: RS485/RJ45 interface; compatible with remote MT50 meter for monitoring and programming controller parameters.
• Electrical data: self-consumption <60 mA (12 V), <30 mA (24 V); grounding: negative common ground.
• Physical and environmental: die-cast aluminium case for excellent heat dissipation; dimensions 196 x 118 x 36 mm (7.72 x 4.65 x 1.42 in); weight 800 g (1.76 lb); operating temperature −35°C to +55°C (−31°F to +131°F); multiple mounting holes for easy installation.
• Documentation and support: supplied with the User Manual for TR1215BN and support information for installation and operation.
• MPPT Technology: This solar charge controller uses the most advanced Maximum Power Point Tracking
• V solar panel). Full system protection: This charge controller features a comprehensive set of electronic protection fun
• iency of your solar system. These include: ?ÿ reverse current prevention at night (from the battery back to the solar panel
• r of system failures. Additional Features: The controller automatically recognises 12/24 V battery systems (note a battery s
• dissipation Multiple connectivity options: This model also features advanced communication technology , which?ÿoffers the u
• charge controller through various methods: 1) The controller can be connected to a remote meter MT50 with an LCD screen , w
• t this product. Controller specifications: The most advanced MPPT technology to ensure high efficiency (>95%) of your solar
• ic protection features Communication port: RS485/RJ45 interface Grounding: negative common ground Current limiting function
• A) Self-consumption: <60 mA (12 V), <30 mA (24 V) Working temperature: -35C to +55C Size:?ÿ19.6 x?ÿ11.8 x
• cm Weight: 800 g Multiple mounting holes for ease of installation The product is covered by
• the following documents for this product: User manual for TR1215BN High efficiency 10 A MPPT solar charge controller
