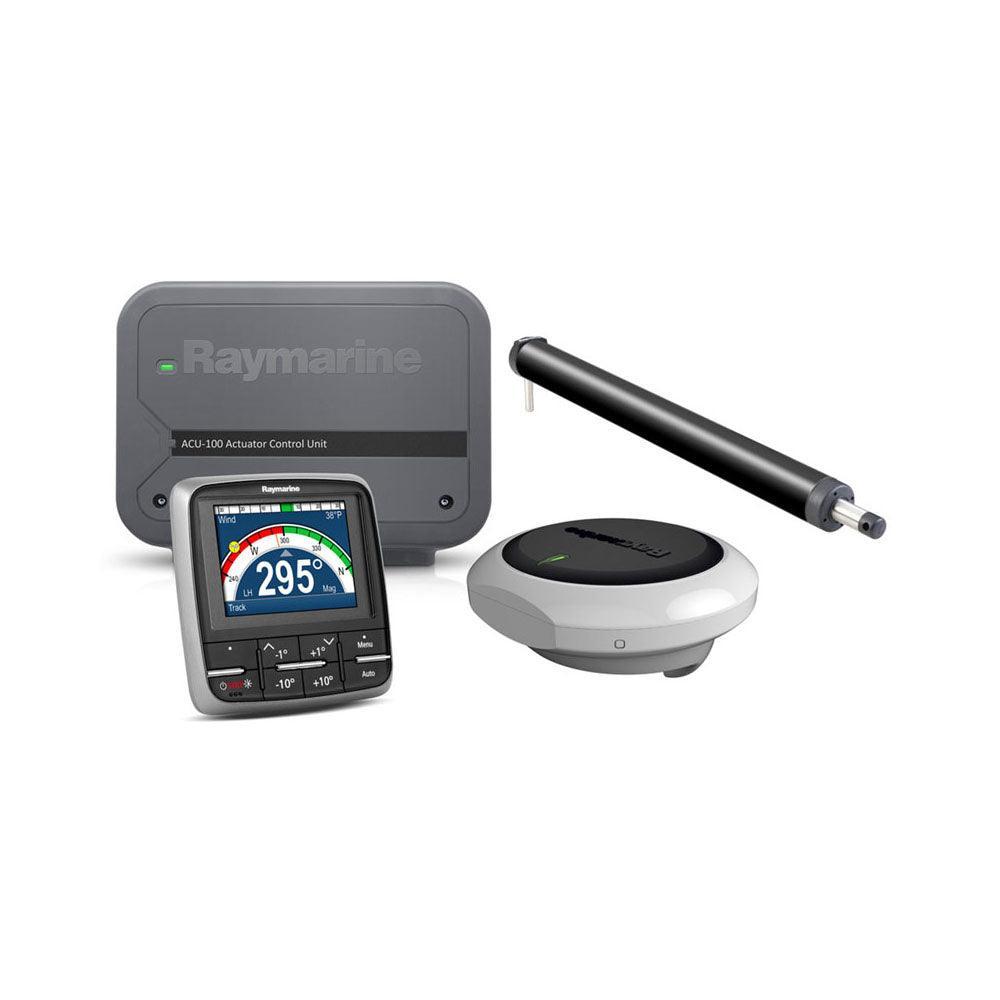

Raymarine Evolution Tiller Pilot System Pack

• Intelligent EV sensor core that evolves and adapts to your vessel’s steering characteristics without any user adjustments
• No lengthy calibration procedures to perform
• 9-axis precision monitoring of pitch roll yaw and heading
• More freedom on Ev sensor core installation - can be installed above or below deck upside down or off the vessels centreline
• Simple SeaTalkng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
• Fast and reliable heading data for MARPA radar overlay and heading modes on Raymarine multifunction displays
• The p70s control head features vibrant color displays and is powered by Raymarine’s intuitive LightHouse user interface
• LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes
• Designed for sailing yachts the p70s offers simple 1 and 10 degree direct course change push buttons
• The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus
• Compact and unobtrusive tiller drive unit

The Raymarine EV-100 Tiller Pilots are perfect for large tiller steered yachts up to 6 000kg (13 200 lbs) displacement. The tiller drive unit is compact and unobtrusive and used by some of the world\'s top single-handed sailors.

EV1 Sensor Core: At the centre of every Evolution system is the intelligent EV sensor core a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

ACU-100: With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats runabouts and smaller cruising yachts. Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

P70s autopilot control head: is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The p70 / p70s control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

In The Box

• Evolution EV1 Sensor Core
• ACU-100
• P70s Colour A/P Head (SaIL)
• ST4000 / S1 Tiller Drive
• Evolution Cabling Kit
• Tiller Pin (5 Pack)
• Mounting Socket (5 Pack)
• RayPilot Remote Plug & Socket Assembly
